brownall Labtap® Burning Gases Product Range
The brownall Labtap® Burning gases range includes bench-mounted and wall-mounted lift & turn fittings for natural gas and LPG applications in laboratories.
The fittings are manufactured from brass DIN 17660 with nitrile O-rings and are supplied with fixed metal hose nozzles. Handles are moulded from chemically resistant polypropylene and colour-coded to match the service medium in accordance with EN 13792:2002.
Item no.
Description
XL 99 562 82 XX – 14
60 mm, 1/2” ISO 7/1-R – UniFlexTM
Please replace XX in item no. with the relevant media below upon order or requests:
10 – Natural gas (G)
12 – Liquified petrol gas (LPG)
Technical specification downloads
Item no.
Description
XL 99 577 82 XX – 14
60 mm, 1/2” ISO 7/1-R – UniFlexTM
Please replace XX in item no. with the relevant media below upon order or requests:
10 – Natural gas (G)
12 – Liquified petrol gas (LPG)
Technical specification downloads
Item no.
Description
XL 20 397 82 XX
ISO 7/1 G3/8” A
Please replace XX in item no. with the relevant media below upon order or requests:
10 – Natural gas (G)
12 – Liquified petrol gas (LPG)
Technical specification downloads
Item no.
Description
XL 20 722 82 10-14
60 mm, 1/2” ISO 7/1-R – UniFlexTM
Please replace XX in item no. with the relevant media below upon order or requests:
10 – Natural gas (G)
12 – Liquified petrol gas (LPG)
Technical specification downloads
Item no.
Description
XL 20 116 82 XX-14
60 mm, 1/2” ISO 7/1-R – UniFlexTM
Please replace XX in item no. with the relevant media below upon order or requests:
10 – Natural gas (G)
12 – Liquified petrol gas (LPG)
Technical specification downloads
Item no.
Description
XL 20 724 82 XX
Wall flange socket for exposed piping with UNIFLEX connection.
Please replace XX in item no. with the relevant media below upon order or requests:
10 – Natural gas (G)
12 – Liquified petrol gas (LPG)
Technical specification downloads
Item no.
Description
XL 99 578 82 XX – 14
60 mm, 1/2” ISO 7/1-R – UniFlexTM
Please replace XX in item no. with the relevant media below upon order or requests:
10 – Natural gas (G)
12 – Liquified petrol gas (LPG)
Technical specification downloads
Item no.
Description
XL 99 561 82 XX – 14
60 mm, 1/2” ISO 7/1-R – UniFlexTM
Please replace XX in item no. with the relevant media below upon order or requests:
10 – Natural gas (G)
12 – Liquified petrol gas (LPG)
Technical specification downloads
Item no.
Description
15 212 350
for OD 15mm CU pipe
Please replace XX in item no. with the relevant media below upon order or requests:
10 – Natural gas (G)
12 – Liquified petrol gas (LPG)
Technical specification downloads
brownall Labtap® Burning Gases Fitting Specifications
Outlet Connections
Fixed serrated metal nozzles suitable for 8 mm to 13 mm ID rubber tubing.
Inlet Connections

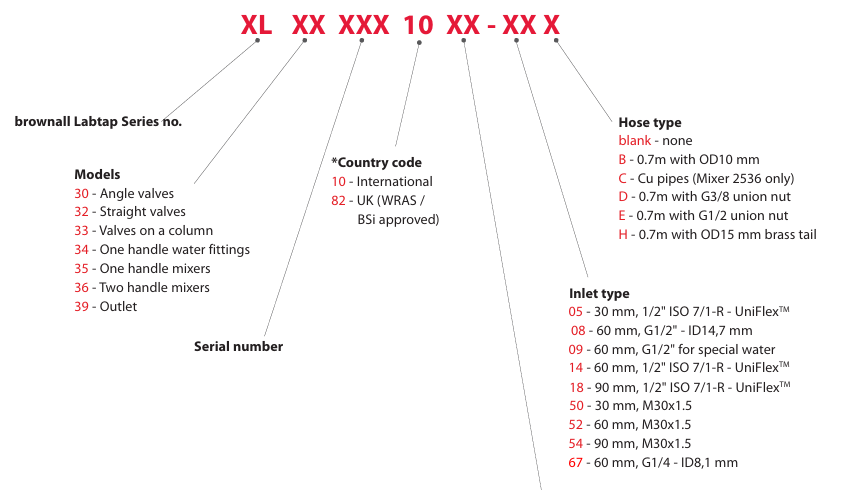

Download product number configurator here »
Testing and Working Pressure
All fittings are tested and inspected before dispatch.
Maximum design Test Pressure: 1000 kPa (10 bar).
Maximum design Working Pressure: 700 kPa (7 bar).
Installation of brownall Labtap® Burning Gas Fittings

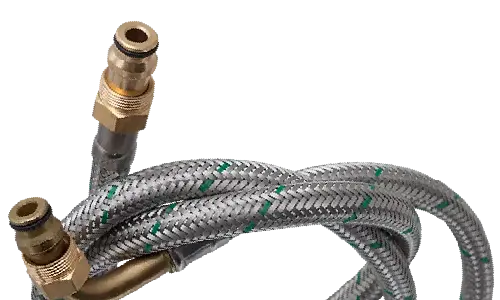

Installation can be done either with flexible hoses or compression ring fittings.
Please request documents 99G0005 and 99G0004 for more information.
Construction: Brass body.
Connection
Fitting connection is a 1⁄4” BSP male threaded shank, 65 mm long. The connection end of the shank is designed to fit 8 mm BS 27871 Table X tubing using a compression nut.
NOTE: Where compression fittings are used for natural gas or LPG installations, they must comply with applicable gas regulations.
Seals: Nitrile.
