Brownall Laboratory Water Taps and water fittings are designed to meet the requirements of EN 200, covering the performance of draw-off taps with metal bodies for water service.
The range includes fittings for potable and non-potable water as well as special water applications. Our special water fittings are suitable for de-ionised, distilled, demineralised and reverse osmosis water, and may also be used with other media that should not come into contact with non-ferrous metals.
The range includes single water taps, mixer taps and water fittings in several configurations. Technical drawings and product specifications are available for the individual models.
Item no.
Description
XL 34 013 82 XX – 14E
60 mm, 1/2” ISO 7/1-R – UniFlexTM Hose: 0,7m with 1/2” union nut *
XL 34 013 82 XX – 14H
60 mm, 1/2” ISO 7/1-R – UniFlexTM Hose: 0,7m with OD15mm brass tail *
Please replace XX in item no. with the relevant media below upon order or requests:
01 – WPC
02 – WPH
07 – WNC
08 – WNH
Item no.
Description
XL 34 011 82 XX – 14E
60 mm, 1/2” ISO 7/1-R – UniFlexTM Hose: 0,7m with 1/2” union nut *
XL 34 011 82 XX – 14H
60 mm, 1/2” ISO 7/1-R – UniFlexTM Hose: 0,7m with OD15mm brass tail *
Please replace XX in item no. with the relevant media below upon order or requests:
01 – WPC
02 – WPH
07 – WNC
08 – WNH
Item no.
Description
XL 34 008 82 XX – 14E
60 mm, 1/2” ISO 7/1-R – UniFlexTM Hose: 0,7m with 1/2” union nut *
XL 34 008 82 XX – 14H
60 mm, 1/2” ISO 7/1-R – UniFlexTM Hose: 0,7m with OD15mm brass tail *
Please replace XX in item no. with the relevant media below upon order or requests:
01 – WPC
02 – WPH
07 – WNC
08 – WNH
Item no.
Description
XL 33 085 82 XX – 14E
60 mm, 1/2” ISO 7/1-R – UniFlexTM Hose: 0,7m with 1/2” union nut*
XL 33 085 82 XX – 14H
60 mm, 1/2” ISO 7/1-R – UniFlexTM Hose: 0,7m with OD15mm brass tail*
Please replace XX in item no. with the relevant media below upon order or requests:
01 – WPC
02 – WPH
07 – WNC
08 – WNH
Item no.
Description
XL 33 086 82 XX – 14E
60 mm, 1/2” ISO 7/1-R – UniFlexTM Hose: 0,7m with 1/2” union nut*
XL 33 086 82 XX – 14H
60 mm, 1/2” ISO 7/1-R – UniFlexTM Hose: 0,7m with OD15mm brass tail*
Please replace XX in item no. with the relevant media below upon order or requests:
01 – WPC
02 – WPH
07 – WNC
08 – WNH
Item no.
Description
XL 33 087 82 XX – 14E
60 mm, 1/2” ISO 7/1-R – UniFlexTM Hose: 0,7m with 1/2” union nut*
XL 33 087 82 XX – 14H
60 mm, 1/2” ISO 7/1-R – UniFlexTM Hose: 0,7m with OD15mm brass tail*
Please replace XX in item no. with the relevant media below upon order or requests:
01 – WPC
02 – WPH
07 – WNC
08 – WNH
Item no.
Description
XL 33 094 82 XX – 14E
60 mm, 1/2” ISO 7/1-R – UniFlexTM Hose: 0,7m with 1/2” union nut*
XL 33 087 82 XX – 14H
60 mm, 1/2” ISO 7/1-R – UniFlexTM Hose: 0,7m with OD15mm brass tail*
Please replace XX in item no. with the relevant media below upon order or requests:
01 – WPC
02 – WPH
07 – WNC
08 – WNH
Item no.
Description
XL 34 072 82 XX – 14E
60 mm, 1/2” ISO 7/1-R – UniFlexTM Hose: 0,7m with 1/2” union nut*
XL 33 087 82 XX – 14H
60 mm, 1/2” ISO 7/1-R – UniFlexTM Hose: 0,7m with OD15mm brass tail*
Please replace XX in item no. with the relevant media below upon order or requests:
01 – WPC
02 – WPH
07 – WNC
08 – WNH
Item no.
Description
XL 34 073 82 XX – 14E
60 mm, 1/2” ISO 7/1-R – UniFlexTM Hose: 0,7m with 1/2” union nut*
XL 34 073 82 XX – 14H
60 mm, 1/2” ISO 7/1-R – UniFlexTM Hose: 0,7m with OD15mm brass tail*
Please replace XX in item no. with the relevant media below upon order or requests:
01 – WPC
02 – WPH
07 – WNC
08 – WNH
Item no.
Description
XL 34 071 82 XX – 14E
60 mm, 1/2” ISO 7/1-R – UniFlexTM Hose: 0,7m with 1/2” union nut*
XL 34 071 82 XX – 14H
60 mm, 1/2” ISO 7/1-R – UniFlexTM Hose: 0,7m with OD15mm brass tail*
Please replace XX in item no. with the relevant media below upon order or requests:
01 – WPC
02 – WPH
07 – WNC
08 – WNH
Item no.
Description
XL 36 152 82 XX – 14E
60 mm, 1/2” ISO 7/1-R – UniFlexTM Hose: 0,7m with 1/2” union nut*
XL 36 152 82 XX – 14H
60 mm, 1/2” ISO 7/1-R – UniFlexTM Hose: 0,7m with OD15mm brass tail*
Please replace XX in item no. with the relevant media below upon order or requests:
39 – WPC + WPH
40 – WNC + WNH
Item no.
Description
XL 36 171 82 XX – 14E
60 mm, 1/2” ISO 7/1-R – UniFlexTM Hose: 0,7m with 1/2” union nut*
XL 36 171 82 XX – 14H
60 mm, 1/2” ISO 7/1-R – UniFlexTM Hose: 0,7m with OD15mm brass tail*
Please replace XX in item no. with the relevant media below upon order or requests:
39 – WPC + WPH
40 – WNC + WNH
Item no.
Description
XL 36 155 82 XX – 14E
60 mm, 1/2” ISO 7/1-R – UniFlexTM Hose: 0,7m with 1/2” union nut*
XL 36 155 82 XX – 14H
60 mm, 1/2” ISO 7/1-R – UniFlexTM Hose: 0,7m with OD15mm brass tail*
Please replace XX in item no. with the relevant media below upon order or requests:
39 – WPC + WPH
40 – WNC + WNH
Item no.
Description
XL 36 154 82 XX – 14E
60 mm, 1/2” ISO 7/1-R – UniFlexTM Hose: 0,7m with 1/2” union nut*
XL 36 154 82 XX – 14H
60 mm, 1/2” ISO 7/1-R – UniFlexTM Hose: 0,7m with OD15mm brass tail*
Please replace XX in item no. with the relevant media below upon order or requests:
39 – WPC + WPH
40 – WNC + WNH
Item no.
Description
XL 36 039 82 XX – 52E
60 mm, m30x1.5, Pipe: 0,7m pipe with 1/2” union nut*
XL 36 039 82 XX – 52H
60 mm, m30x1.5, Hose: 0,7m with OD15mm brass tail*
Please replace XX in item no. with the relevant media below upon order or requests:
39 – WPC + WPH
40 – WNC + WNH
Item no.
Description
XL 3317010XX-09
OD 10x 1,5 mm LLDPE tube
Please replace XX in item no. with the relevant media below upon order or requests:
01 – WPC
03 – WDI
Item no.
Description
XL 33 201 10 XX
For model with ABS 5/4″ Tee-piece
XL 33 021 10 XX
For model with OD25 mm PP-n Teepiece
Please replace XX in item no. with the relevant media below upon order or requests:
01 – WPC
03 – WDI
Brass with sealing in EPDM and PVDF. Wrist operated fittings have ceramic headwork’s made of Aloxide. Most water fittings are delivered with plastic (PP) hose nozzles. Handles of chemical resistant polypropylene, coloured to match the service medium in accordance with BS EN 13792:2002.
All fittings are protected by a surface treatment of Polyester powder coat which is highly resistant to most chemicals.
Serrated plastic nozzles (fixed or removable) suitable for 8 mm to 13 mm ID rubber tubing or aerator are fitted on request.
Download product number configurator here »
All fittings are tested and inspected before dispatch.
Maximum design working pressure is 1000 kPa (10 bar).
The maximum installation test pressure is 1000 kPa (10 bar).
Installation of water fittings can be done either with flexible hoses or compression ring fittings. Please request documents 99G0005 and 99G0004 for more information.
It is a condition of Approval of the XL range of Labtaps that the following information is given to our customers: “Supply shall be by gravity from a cistern by means of a distributing pipe which does not supply any other fitting at a lower level” (IRN 105) (Byelaws 22 and 25). All water systems should be thoroughly flushed before use.
All fittings are delivered with easy-to-mount anti-rotational mounting kit.

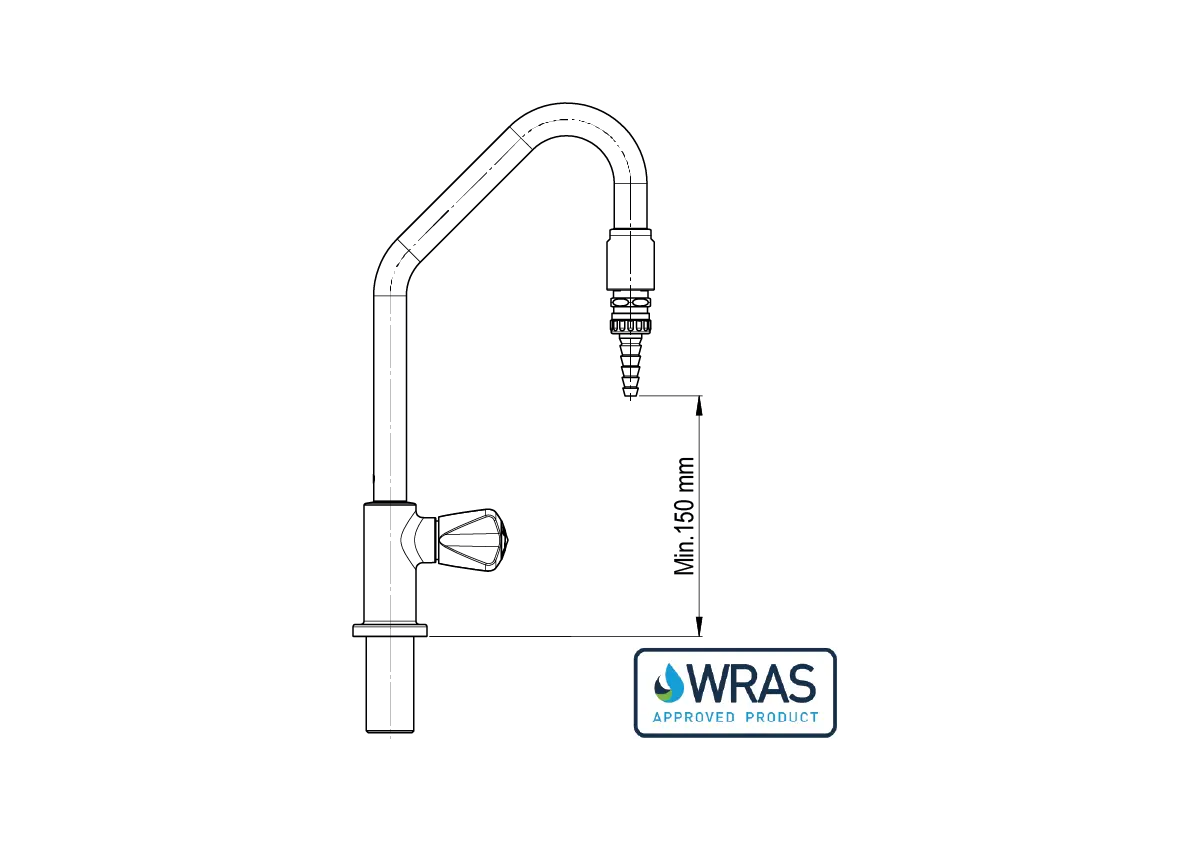

Check with local water board their requirements regarding AUK3 back flow prevention regulations. It is required that a minimum of 150 mm be maintained between the lowest point of the air aperture of the DC device and free discharge of spillover level.
All swanneck fittings are supplied with a fixed plastic nozzle with exception for those with pipe interrupter, which are delivered with a removable hose nozzle.
All fittings coded according to EN13792-2002.
A balanced tank storage water supply for BOTH hot and cold services is required for all non-divided flow mixer fittings.
Direct mains cold water supply and non-pressurized hot water tanks may ONLY be used with the XL36155 and the XL36154 (divided flow) mixer.
NOTE:
Maximum Test Pressure: 1000 kPa (10 bar).
Maximum Working Pressure: 1000 kPa (10 bar).
